Quality & Reliability

Quality Materials

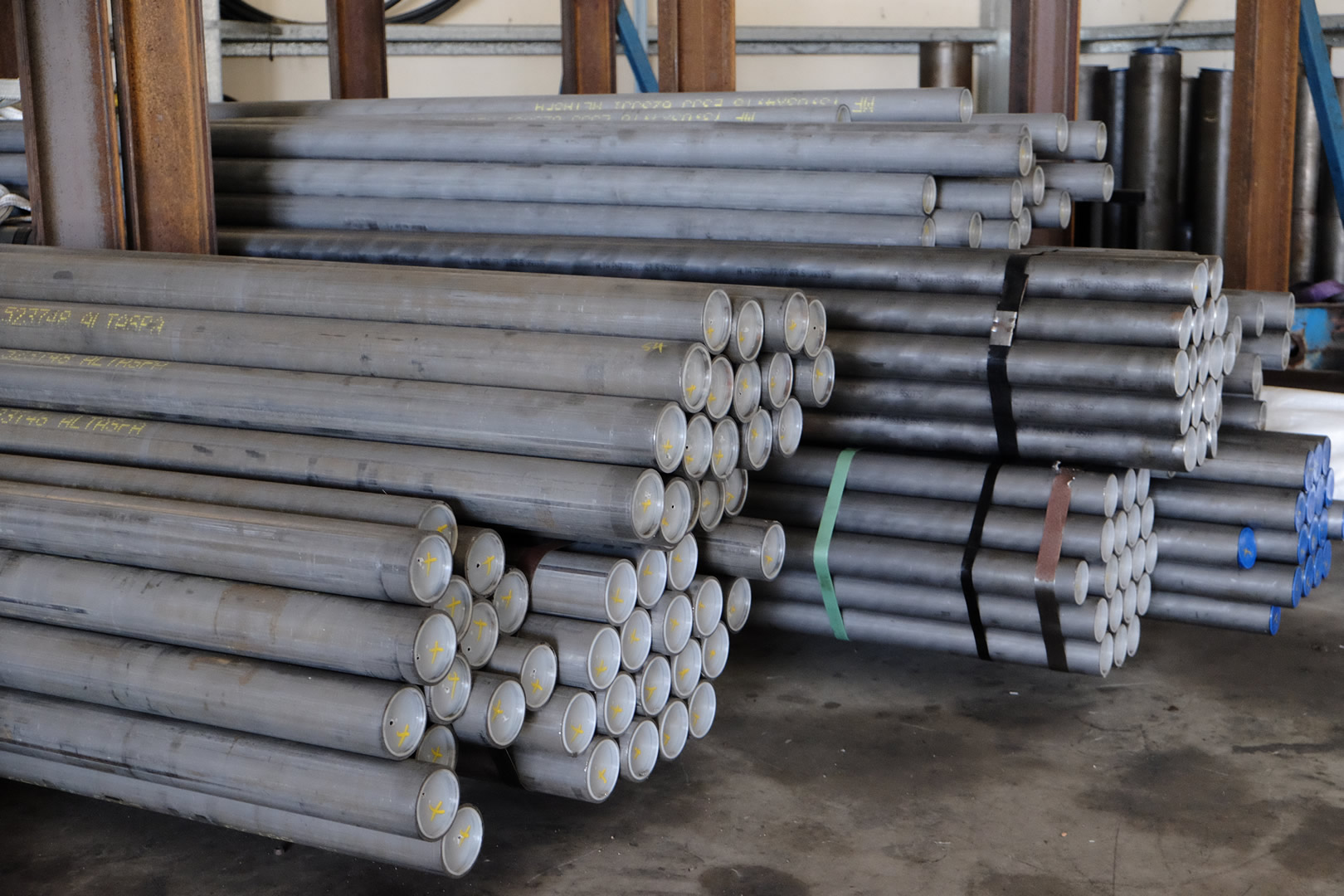

Steel – As rolled black round bar, steel grade S45Cr (1045). UT tested ASTM Sep 1921 Class D/d or better.

Chrome – High Strength S45C Steel, Cold Drawn to >520Mpa Yield Strength. Corrosion Resistance >120 Hours ISO9227, NSS Rating >9. Chrome Thickness >20um, Surface Finished <Ra0.2µm and Tolerance to ISOF7

Induction Hardened Chrome – Induction Hardened High Strength S45C Steel, Cold Drawn to >520Mpa yield strength. Corrosion resistance > 120 hours, ISO 9227, NSS Rating >9. Chrome Thickness >20um, Surface Finished <Ra 0.2µm and Tolerance to ISO F7.  Hardness depth that is available 1 to 3 mm, with hardness rating HRC 53 plus or -2.  Ratings of up to 62 HRC are available with other materials.

Stainless Steel Chrome – Stainless steel material grades of 303/304/316/2205 and H1150D there are also available in the above ground condition.

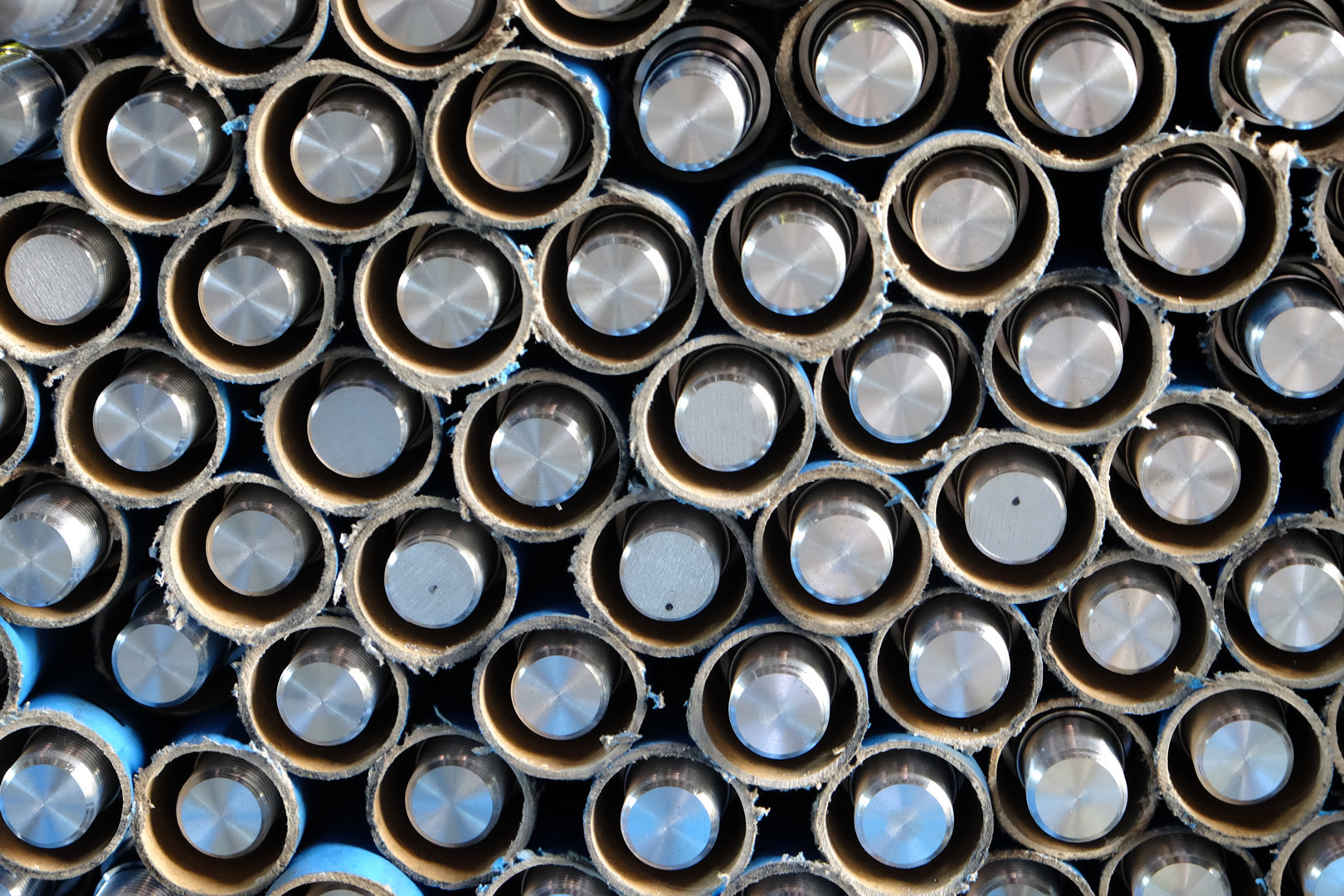

Hydraulic Tube – SSID electro welded steel cylinder tube. Steel grade E355 + C (ST52 as drawn) – EN 10305-2 – inside tolerance H9 – inside surface roughness Max 0.08µm – straightness 1mm/1000mm

Honed Tube – Cold drawn cylinder tube (DOM welded EN 10305-2 or seamless EN 10305-1) steel grade E355 – inside honed – inside surface roughness Max 0.30µm – straightness 1mm/1000mm

Seals – QMN predominately uses internationally available KASTAS seals throughout our Cylinder range. This ensures quality performance and availability of replacement seals world-wide.

Valves – QMN predominately uses SUN Valves throughout our Cylinder range.


Quality Product Range

Standard AG Cylinder Range stocked – 1.5” to 5”

Standard Industrial Cylinder Range stocked – 1.5” to 5”

Side Tipper Cylinders stocked – For most popular Brands

Tilt Tray Cylinders manufactured to your specification

Concrete Range of Roller, Chute Cylinders and Parts




Reliability & Warranty

Cylinders Manufactured by QMN are oil tested for integrity. Unique serial number identification enables tracking for the life of the cylinder.
